Model Evaluation in Python

Various model evaluation techniques help us to judge the performance of a model and also allow us to compare different models fitted on the same dataset. We not only evaluate the performance of the model on our train dataset but also our test/unseen dataset. In this blog, we will be discussing a range of methods that can be used to evaluate supervised learning models in Python. We will first start off by using evaluation techniques used for a Regression Models. Many of these methods have been explored under the theory section in Model Evaluation - Regression Models. We will then proceed with various evaluation techniques used for evaluating classification models which also have been explored under the theory section in Model Evaluation - Classification Models. In this blog, we will be evaluating a Linear Regression and a Logistic Regression Model.

Evaluating Regression Model

Importing Preliminary Libraries

We first import some preliminary libraries such as pandas, numpy etc.

python

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
%matplotlib inline

Importing Dataset

We will use a pre-processed Boston dataset.

python

BosData = pd.read_excel('C:/Users/user/Desktop/Data Sets/Linear Regression/BostonData_Updated.xlsx')
BosData.head()

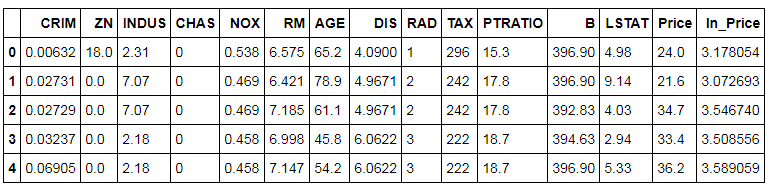

BosData.head() - first 5 rows of the Boston dataset with columns CRIM, ZN, INDUS, CHAS, NOX, RM, AGE, DIS, RAD, TAX, PTRATIO, B, LSTAT, Price, ln_Price — Output: the Boston dataset.

Splitting Dataset

We now split the dataset into train and test so that we can fit a linear regression model on the train dataset.

python

X = BosData[['CRIM', 'ZN', 'INDUS', 'CHAS', 'NOX', 'RM', 'AGE', 'DIS', 'RAD', 'TAX', 'PTRATIO', 'B', 'LSTAT']]
Y = BosData['ln_Price']

from sklearn.model_selection import train_test_split
X_train,X_test,Y_train,Y_test=train_test_split(X,Y,test_size=0.3,random_state=123)

Initialising and Fitting Model

We initialise a linear regression model and fit it on the Train dataset.

python

from sklearn import linear_model
linreg_model = linear_model.LinearRegression()
linreg_model.fit(X_train,Y_train)

LinearRegression(copy_X=True, fit_intercept=True, n_jobs=1, normalize=False)

Predicting on Test Dataset

We use the above-created model and predict the value of the dependent variable in the test dataset.

python

lin_test_pred = linreg_model.predict(X_test)

Import Metrics

As now we have the predicted values, we can use these values and compare them with the original values i.e. the values of the dependent variable of the test dataset. To do so, we import metrics from sklearn which allows us to perform a range of evaluation techniques to evaluate this regression model.

python

from sklearn import metrics

Sum of Squared Error (SSE)

It is one of the most simple for evaluating a regression model. However as of now, there is no inbuilt function to calculate SSE, therefore, we will calculate SSE by multiplying the number of observations by mean square error to get the value of SSE.

python

Y_test.shape

(152,)

The shape command tells us the dimension of the test dataset and we use this value to calculate the SSE.

python

SSE = 152*(metrics.mean_squared_error(Y_test,lin_test_pred))
SSE

6.734099856284794

The SSE of this Linear Regression model comes out to be 6.73

Mean Squared Error (MSE)

We use the mean_squared_error command to calculate MSE in python.

python

metrics.mean_squared_error(Y_test,lin_test_pred)

0.04430328852818943

The MSE for the above created Linear Regression model comes out to be 0.04

Root Mean Squared Error (RMSE)

Here we use numpy and metrics to calculate the RMSE.

python

np.sqrt(metrics.mean_squared_error(Y_test,lin_test_pred))

0.21048346378798843

RMSE comes out to be 0.21

Mean Absolute Error (MAE)

Here metrics provide us with mean_absolute_error which allows us to easily calculate the MAE.

python

metrics.mean_absolute_error(Y_test,lin_test_pred)

0.1520353429765324

The mean absolute error from this regression model comes out at 0.15

Coefficient of Determination (R²)

Among the most commonly used measure for evaluating regression models, Coefficient of Determination or R² can be easily calculated by using the metrics package.

python

metrics.r2_score(Y_test,lin_test_pred)

0.7194695009566641

The R² for this Regression model comes out to be 0.71

Adjusted R²

Adjusted R-square is used to provide us with a more unbiased picture as it punished multicollinearity and gives a fair evaluation value. To calculate Adjusted R² we first calculate the variance of Y_test.

python

var_test = Y_test.var()
var_test

0.15897268903755207

We use the above-calculated variance to compute Adjusted R-square.

python

mse = metrics.mean_squared_error(Y_test,lin_test_pred)
Adj_rsquare = 1-(mse/var_test)
Adj_rsquare

0.7213150963451072

Strictly, 1 − MSE/var(Y_test) approximates R², not Adjusted R² - it applies no penalty for the number of predictors (K), which is why the value here (0.72) is even slightly higher than the R² of 0.72. A true Adjusted R² uses 1 − (1 − R²)·(n−1)/(n−K−1) and is always ≤ R². Treat the value above as an R² approximation.

The adjusted R-square comes out to be 0.72

Analysis of Residuals

Residuals are the differences between the actual values and the predicted values. If we square these errors and sum them up then we get SSE (Residual Sum of Squares). A method to evaluate a model is by analyzing these error terms (residuals) by plotting them on a graph. Ideally, if the residuals appear to behave randomly and show no pattern then it means that the model is good.

python

plt.scatter(lin_test_pred,(Y_test-lin_test_pred),marker='^')
plt.xlabel("Fitted")
plt.ylabel("Residual")

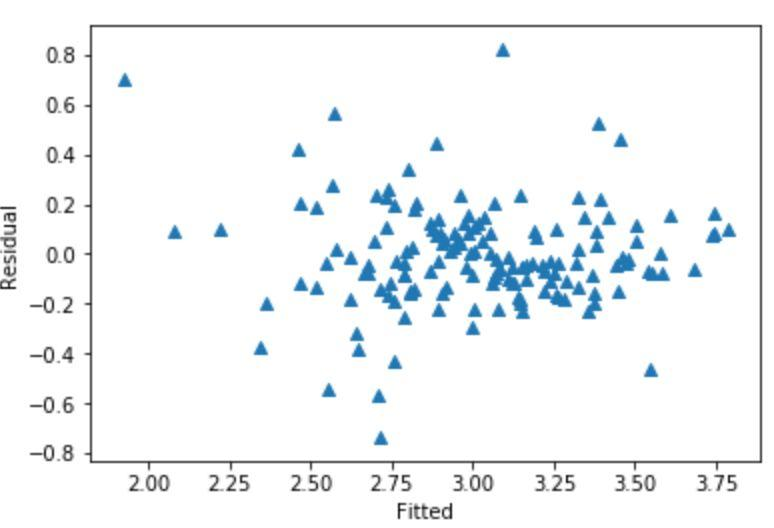

Scatter plot of residuals against fitted values with triangle markers, points scattered randomly around zero with no visible pattern — Output: residuals plotted against fitted values.

There is no pattern in the error terms which means that there is no non-linearity in the data. As the residuals appear to behave randomly and show no pattern, we can say that the model is good.

Evaluating Classification Model

Importing Dataset and Fit Logistic Regression Model

We use a pre-processed Titanic dataset to create a regularized logistic regression model and then fit it on the train dataset.

python

TitanicD1 = pd.read_excel('C:/Users/user/Desktop/Data Sets/Logistic Regression/TitanicData_Binary.xlsx')
scaled_final = pd.read_excel('C:/Users/user/Desktop/Data Sets/Logistic Regression/Titanic_Scaled.xlsx')
X1_train,X1_test,Y1_train,Y1_test=train_test_split(scaled_final,TitanicD1['Survived'],test_size=0.3,random_state=123)
from sklearn.linear_model import LogisticRegression
log_model = LogisticRegression()
log_model.fit(X1_train,Y1_train)

LogisticRegression(C=1.0, class_weight=None, dual=False, fit_intercept=True, intercept_scaling=1, max_iter=100, multi_class='ovr', n_jobs=1, penalty='l2', random_state=None, solver='liblinear', tol=0.0001, verbose=0, warm_start=False)

Predicting on Test Dataset

We use the above-created logistic regression model and predict the value of the dependent variable in the test dataset.

python

pred_log = log_model.predict(X1_test)

Import Metrics

As now we have the predicted values, we can perform various evaluation technique. For evaluating classification models also we import metrics from sklearn which allows us to calculate various metrics.

python

from sklearn import metrics

Confusion Matrix

Confusion matrix is one of the most powerful and commonly used evaluation technique as it allows us to compute a whole lot of other metrics that allow us to evaluate the performance of a classification model.

Creating a simple confusion matrix:

python

cm = metrics.confusion_matrix(Y1_test,pred_log)
cm

Confusion matrix as array: [[147, 23], [30, 68]] — Output: the confusion matrix as an array.

We will now represent the Confusion Matrix using the heat map in the seaborn package.

python

import seaborn as sn
sn.heatmap(cm, annot=True, fmt='.2f', xticklabels = ["No", "Yes"], yticklabels = ["No", "Yes"])
plt.ylabel('True label',fontsize=12)
plt.xlabel('Predicted label',fontsize=12)

Seaborn heatmap of confusion matrix: TN=147, FP=23, FN=30, TP=68 — Output: confusion matrix heatmap.

Various types of metrics can be calculated using the confusion matrix and in order to do so, we create a classification report.

python

print(metrics.classification_report(Y1_test,pred_log,digits=2))

Classification report: class 0 precision 0.83, recall 0.86, f1 0.85; class 1 precision 0.75, recall 0.69, f1 0.72; avg 0.80 — Output: the classification report.

From the classification report, we are able to get precision and recall.

Accuracy Score

Accuracy Score can also be calculated using metrics.

python

metrics.accuracy_score(Y1_test,pred_log)

0.8022388059701493

The accuracy score for the logistic regression model comes out to be 0.80

AUC and ROC

In logistic regression, the values are predicted on the basis of the probability of the dependent variable. For example, in the Titanic dataset, logistic regression computes the probability of the survival of the passengers. By default, it takes the cut off value equal to 0.5, i.e. any probability value greater than 0.5 will be accounted as 1 (survived) and any value less than 0.5 will be accounted as 0 (not survived).

In order to improve the accuracy of the model, we can change the value of this cut-off. The new value of cut off can be decided by using the ROC curve. To know more about AUC and ROC curve, refer to the Model Evaluation - Classification Models in the theory section

AUC

First we will predict the probability values from logistic regression model for our dataset.

python

predict_proba = pd.DataFrame(log_model.predict_proba(X1_test))
predict_proba.head()

predict_proba.head() showing probabilities for class 0 and class 1 — Output: predicted probabilities (first 5 rows).

We will now make a dataset containing actual values of the Survived variable (dependent variable), predicted values and probabilities of survival. To do this, we first start with converting predicted values of survival to a data frame for merging datasets.

python

pred_log = pd.DataFrame(pred_log)

We now reset the index for Y1_test

python

Y1_test1 = Y1_test.reset_index()

We then concatenate datasets using pd.concat

python

predictions = pd.concat([Y1_test1,pred_log,predict_proba],axis = 1)

Finally, the columns of the dataset are renamed and we get the final table that allows us to calculate the AUC score and create ROC Curve.

python

predictions.columns = ['index', 'actual', 'predicted', 'Survived_0', 'Survived_1']
predictions.head()

predictions.head() with columns index, actual, predicted, Survived_0, Survived_1 — Output: the predictions table.

We use the above table to compute the AUC score i.e. the Area Under the Curve.

python

auc_score = metrics.roc_auc_score( predictions.actual, predictions.Survived_1)
round( float( auc_score ), 2 )

0.86

The AUC score comes out to be 0.86

ROC

We now calculate the False Positivity Rate, True Positivity Rate and Threshold and use them to plot the ROC curve (Receiver Operating Characteristic)

python

fpr, tpr, threshold = metrics.roc_curve(Y1_test,predictions.Survived_1)
roc_auc = metrics.auc(fpr, tpr)

plt.title('Receiver Operating Characteristic')
plt.plot(fpr, tpr, 'b', label='ROC curve (area = %0.2f)' % auc_score)
plt.legend(loc = 'lower right')
plt.plot([0, 1], [0, 1],'r--')
plt.xlim([0, 1])
plt.ylim([0, 1])
plt.ylabel('True Positive Rate')
plt.xlabel('False Positive Rate')

ROC curve with blue line (area = 0.86) and red diagonal baseline — Output: the ROC curve.

As we can notice, the minimum difference between the False Positive and True Positive is when our sensitivity value at 0.6. Now we will calculate the new cut off value based on this value of sensitivity and see how the accuracy of our model increases.

python

cutoff_prob = threshold[(np.abs(tpr - 0.6)).argmin()]
round( float( cutoff_prob ), 2 )

0.6

The ideal cutoff for having the maximum sensitivity (True Positive Rate) and 1-specificity (False Positive Rate) comes out to be 0.6

We will now predict the survival rate by using the new cut off value.

python

predictions['new_labels'] = predictions['Survived_1'].map( lambda x: 1 if x >= cutoff_prob else 0)
predictions.head()

predictions.head() now with new_labels column added — Output: predictions table with new labels.

We create new Confusion Matrix with actual and new values.

python

cm1 = metrics.confusion_matrix( predictions.actual,
                          predictions.new_labels, [1,0] )
sn.heatmap(cm1, annot=True, fmt='.2f', xticklabels = ["No", "Yes"], yticklabels = ["No", "Yes"])
plt.ylabel('True label',fontsize=12)
plt.xlabel('Predicted label',fontsize=12)

New confusion matrix heatmap after updated cutoff: TP=59, FP=39, FN=5, TN=165 — Output: updated confusion matrix with new cutoff.

We also calculate the new Accuracy Score.

python

metrics.accuracy_score(predictions.actual,predictions.new_labels,[1,0])

0.835820895522388

We notice a slight increase in our accuracy from roughly 0.802 to 0.835.

A new Classification report can be generated using the new outcome from the new cut-off value.

python

print(metrics.classification_report(predictions.actual,predictions.new_labels,digits=2))

Updated classification report: class 0 precision 0.81, recall 0.97; class 1 precision 0.92, recall 0.60; avg 0.85 — Output: updated classification report.

KS, Gain and Lift Chart

As explored in the theory section, Kolmogorov-Smirnov, Gain and Lift chart can be very useful for evaluating a classification model. Here we will explore all the three methods to evaluate a logistic regression model.

Dataset

As the Titanic Dataset that we used so far don't have much data, therefore, it becomes tough to perform KS statistics or generate gain and lift charts. Therefore, to demonstrate the above mentioned methods we used a different dataset having a binary dependent variable: Defaulters and Non-Defaulters. We will be importing the dataset set where the probabilities of defaulters has already been predicted by using a logistic regression model.

python

Train_Data = pd.read_csv('C:/Users/user/Desktop/Data Sets/Logistic Regression/Credit_Default.csv')
Train_Data1 = Train_Data[['CHURN','Prob']]
Train_Data1.head()

Train_Data1.head() with columns CHURN and Prob — Output: the dataset with CHURN and probability columns.

KS Chart

We first group the probabilities by quartiles and run the program to make 10 bins for the probabilities.

python

Train_Data1['decile'] = pd.qcut(Train_Data1['Prob'],10,labels=['1','2','3','4','5','6','7','8','9','10'])
Train_Data1.head()

Train_Data1.head() now with decile column added — Output: dataset with decile column.

We will now change the name of the variables for our understanding.

python

Train_Data1.columns = ['Defaulter','Probability','Decile']
Train_Data1.head()

Train_Data1.head() with renamed columns Defaulter, Probability, Decile — Output: dataset with renamed columns.

Non-Defaulters can be calculated by subtracting 1 from the column of Defaulters.

python

Train_Data1['Non-Defaulter'] = 1-Train_Data1['Defaulter']
Train_Data1.head()

Train_Data1.head() with Non-Defaulter column added — Output: dataset with Non-Defaulter column.

Now, we will make use of the pivot table to make the chart table to calculate KS statistics.

python

df1 = pd.pivot_table(data=Train_Data1,index=['Decile'],values=['Defaulter','Non-Defaulter','Probability'],
                     aggfunc={'Defaulter':[np.sum],
                              'Non-Defaulter':[np.sum],
                              'Probability' : [np.min,np.max]})
df1.head()

df1.head() pivot table with Decile index, Defaulter sum, Non-Defaulter sum, Probability amax and amin — Output: pivot table (first 5 rows).

We use reset_index for a better understanding of the table.

python

df1.reset_index()

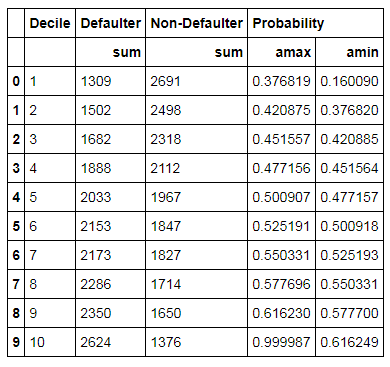

df1.reset_index() showing all 10 deciles — Output: pivot table with reset index.

We rename the columns as per our requirement.

python

df1.columns = ['Defaulter_Count','Non-Defaulter_Count','max_score','min_score']
df1['Total_Cust'] = df1['Defaulter_Count']+df1['Non-Defaulter_Count']
df1

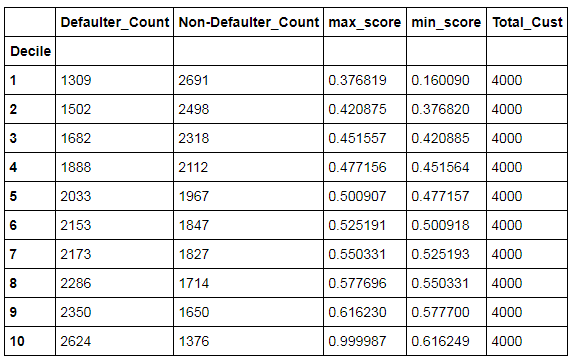

df1 with renamed columns: Defaulter_Count, Non-Defaulter_Count, max_score, min_score, Total_Cust — Output: table with renamed columns.

We Sort the min_score in descending order.

python

df2 = df1.sort_values(by='min_score',ascending=False)
df2

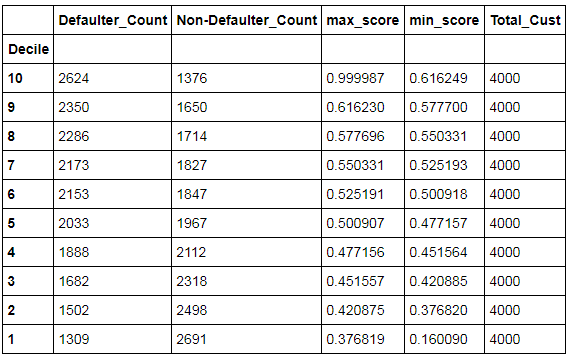

df2 sorted by min_score descending, decile 10 first — Output: table sorted by min_score descending.

We now calculate the defaulters and non-defaulters rate per decile.

python

df2['Default_Rate'] = (df2['Defaulter_Count'] / df2['Total_Cust']).apply('{0:.2%}'.format)
default_sum = df2['Defaulter_Count'].sum()
non_default_sum = df2['Non-Defaulter_Count'].sum()
df2['Default %'] = (df2['Defaulter_Count']/default_sum).apply('{0:.2%}'.format)
df2['Non_Default %'] = (df2['Non-Defaulter_Count']/non_default_sum).apply('{0:.2%}'.format)
df2

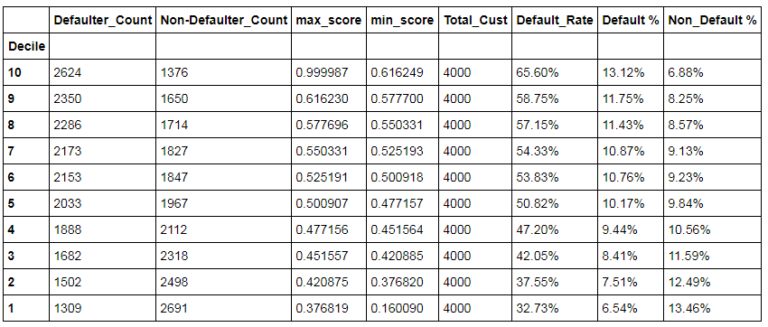

df2 with Default_Rate, Default% and Non_Default% columns added — Output: table with default rates per decile.

We finally calculate KS Statistics using the above values.

python

df2['ks_stats'] = np.round(((df2['Defaulter_Count'] / df2['Defaulter_Count'].sum()).cumsum() - (df2['Non-Defaulter_Count'] / df2['Non-Defaulter_Count'].sum()).cumsum()) * 100, 2)
df2

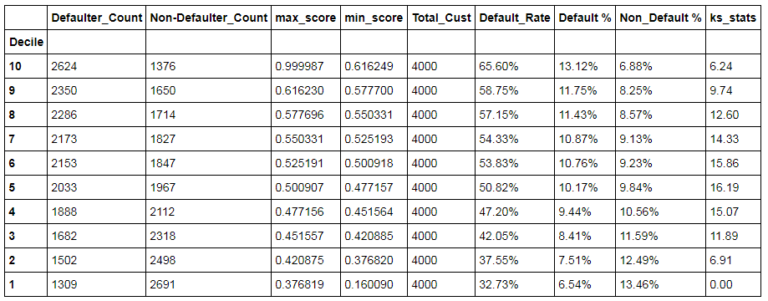

df2 with ks_stats column added — Output: table with KS statistics.

KS Statistics is the difference between the cumulative Defaulter and Non-Defaulter Rate.

We will now find the KS Statistics value which is the max of KS statistics scored for each decile.

python

flag = lambda x: '*****' if x == df2['ks_stats'].max() else ''
df2['max_ks'] = df2['ks_stats'].apply(flag)
df2

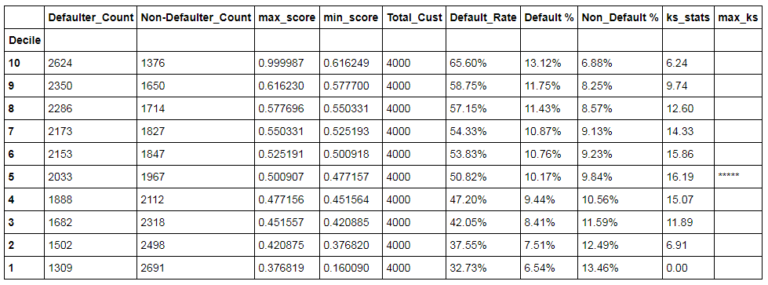

df2 with max_ks column flagging the maximum KS statistic row (train) — Output: train table with max KS flagged.

The same process shall be carried with the test data set and you will arrive on the following output.

python

flag = lambda x: '*****' if x == df_test['ks_stats'].max() else ''
df_test['max_ks'] = df_test['ks_stats'].apply(flag)
df_test

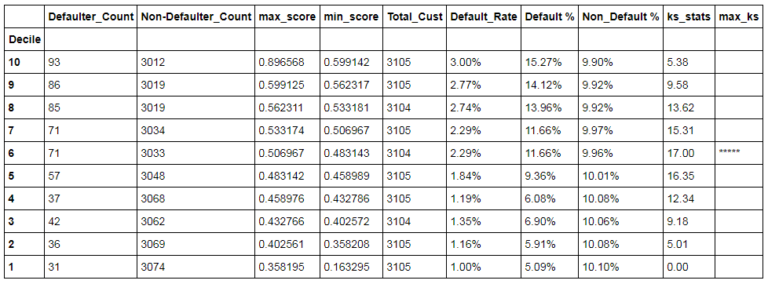

df_test with max_ks column flagging the maximum KS statistic row (test) — Output: test table with max KS flagged.

Gains Chart

To plot the Gain Chart, we need to calculate the cumulative of defaulters percentage. This has to be calculated for both train and test datasets. Hence, we will make use of the output generated while computing KS statistic.

python

df_test1 = df_test.copy()
df_test1['default_cum%'] = np.round(((df_test['Defaulter_Count'] / df_test['Defaulter_Count'].sum()).cumsum() * 100), 2)
df_test1

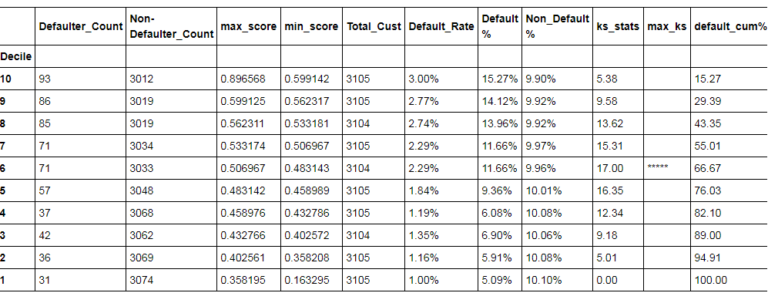

df_test1 with default_cum% column added — Output: test table with cumulative default percentage.

default_cum%_test column separately.

python

df_test2 = df_test1[['default_cum%']]
df_test2.reset_index()
df_test2.columns = ['default_cum%_test']
df_test2

df_test2 with single column default_cum%_test, 10 decile rows — Output: test cumulative default column.

Adding Base values in another column.

python

df3 = df2.copy()
df3['default_cum%'] = np.round(((df2['Defaulter_Count'] / df2['Defaulter_Count'].sum()).cumsum() * 100), 2)
df_train = df3[['default_cum%']]
df_train.reset_index()
df_train.columns = ['default_cum%_train']
df_train2 = df_train.copy()
df_train2['Base %'] = [10,20,30,40,50,60,70,80,90,100]
df_train2

df_train2 with columns default_cum%_train and Base%, 10 decile rows — Output: train cumulative default with baseline.

Concatenating the above dataset with the default_cum%_train.

python

final = pd.concat([df_train2,df_test2],axis=1)
final

final table with columns default_cum%_train, Base%, default_cum%_test — Output: combined train/test cumulative table.

Creating a Gain chart using the above table.

python

gains_chart = final.plot(kind='line',use_index=False)
gains_chart.set_ylabel("Proportion of Defaulters",fontsize=12)
gains_chart.set_xlabel("Decile",fontsize=12)
gains_chart.set_title("Gains Chart")

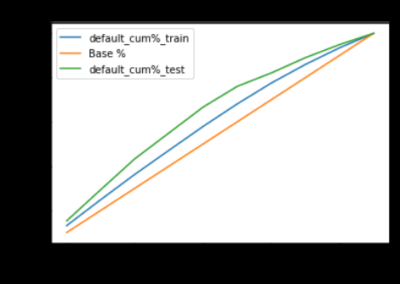

Gains chart: three lines (default_cum%_train, Base%, default_cum%_test) plotted against decile — Output: the Gains Chart.

Lift Chart

We use the dataset created above and add lift_train and lift_test column to it along with 1 as the baseline.

python

final2 = final.copy()
final2['lift_train'] = (final['default_cum%_train']/final['Base %'])
final2['lift_test'] = (final['default_cum%_test']/final['Base %'])
final2['Baseline'] = [1,1,1,1,1,1,1,1,1,1]
final2

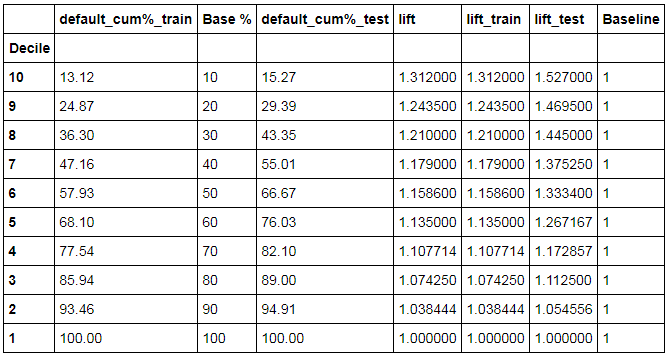

final2 table with default_cum%_train, Base%, default_cum%_test, lift, lift_train, lift_test, Baseline — Output: the combined table with lift columns.

We just keep the columns that are required to create a lift chart.

python

lift_chart = final2[['lift_train','lift_test','Baseline']]
lift_chart

lift_chart table with columns lift_train, lift_test, Baseline across 10 deciles — Output: the lift table.

We now finally create a lift chart using the above table.

python

lift_chart1 = lift_chart.plot(kind='line',use_index=False)
lift_chart1.set_ylabel("lift",fontsize=12)
lift_chart1.set_xlabel("Decile",fontsize=12)
lift_chart1.set_title("Lift Chart")
lift_chart1.set_ylim(0.0,2)

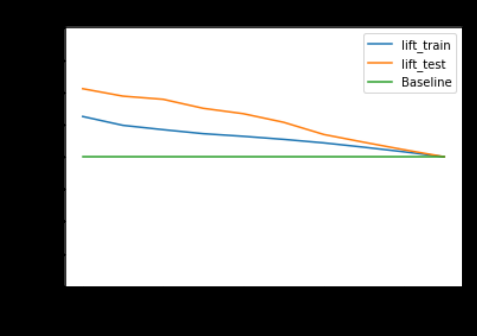

Lift chart: lift_train, lift_test, and Baseline lines plotted against decile — Output: the Lift Chart.

In this blog, we explored methods such as Sum of Squared Errors, Mean Squared Error, Coefficient of Determination etc that are very useful in evaluating Regression Models. On the other hand, for evaluating classification models methods such as Confusion Matrix along with charts such as KS, Gain and Lift Chart got used for evaluating a Logistic Regression Model. Similar methods have also been explored in R in the Model Evaluation using R.
